Medium Grand

Request Model Information



Model M Overview

The original factory name was “Mini Grand” because it was the first Steinway model less than 5’10” (1900 Model O) in length. All pianos under 6’ were originally classified as part of the Miniature Family of Steinways. Prior to 1900, no Steinway grand model was less than 6’. The Model M has become one of the most popular Steinway models because it takes up less space than its larger siblings, while still offering an exceptionally well-balanced tonality throughout all pitch registers. For the pianist with space restrictions that are less severe than those that accommodate only the smallest model S(5’1”).

From Our Inventory

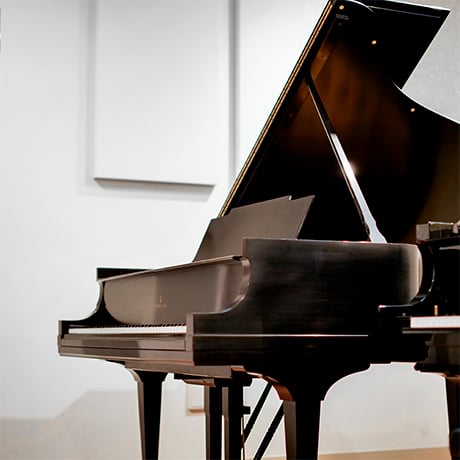

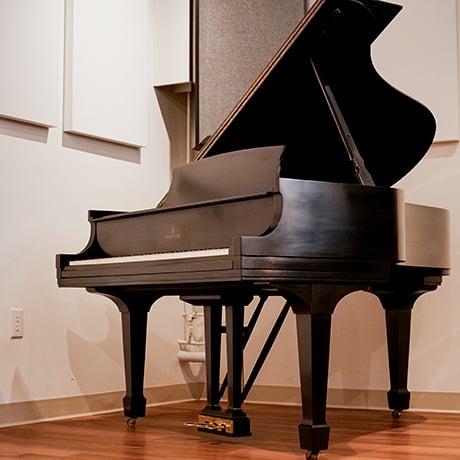

Available Model M's

Not seeing what you're looking for?

Connect with a Piano Consultant

The New Model M Customer

Who's it for?

  • For piano lovers who insist on a more powerful bass register than afforded by the Model S, yet who do not have the space or budget for a larger Steinway. The “ideal” baby grand.

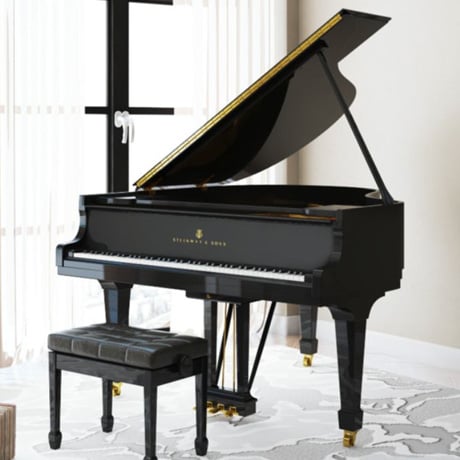

Steinway Model M Piano

Who's it not for?

  • Not for more advanced amateurs and professionals who are looking for the bigger “grand sound” that can fill a larger space with a wider dynamic range.

Man With Piano Cut Out

Model M Specifications

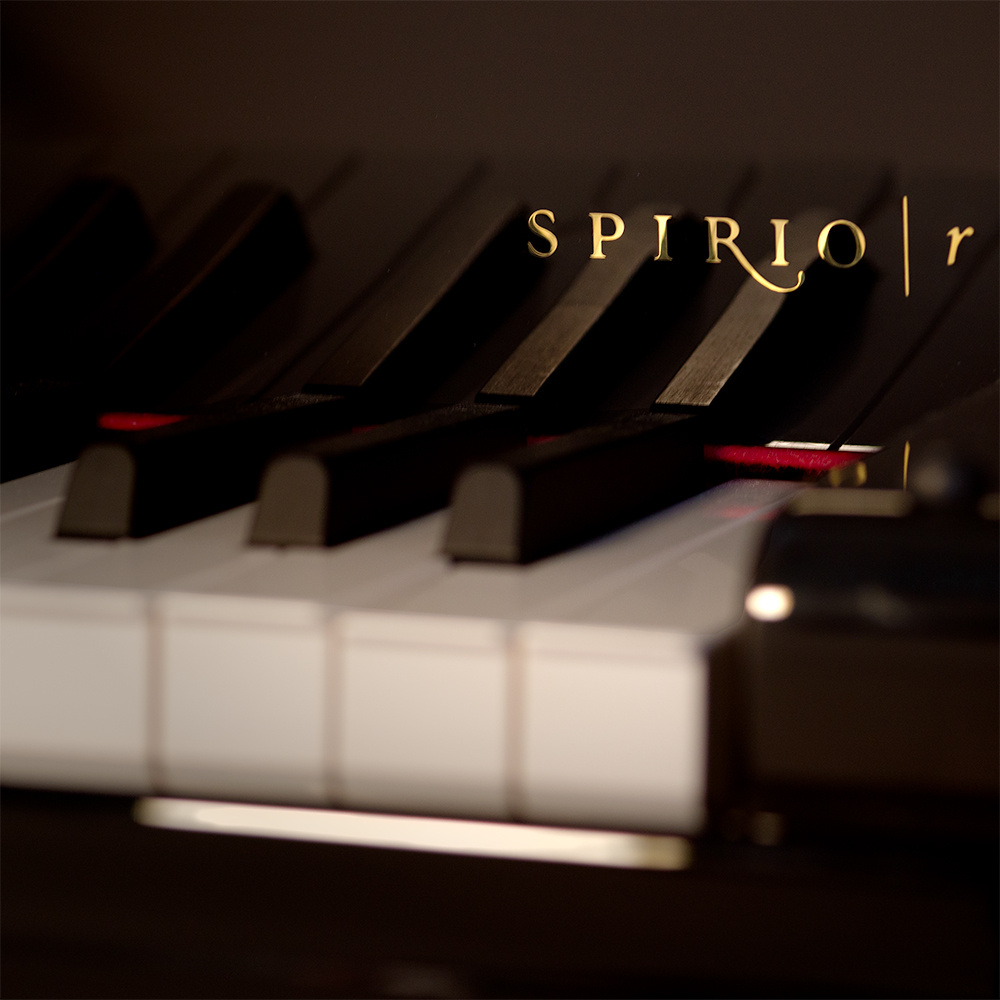

At 5′ 7″ (170 cm) in length, the Model M is also available as a STEINWAY SPIRIO, the world’s finest high-resolution player piano. It is also available in the SPIRIO | r package as well.


Length: 5′ 7″ (170 cm)
Width: 57¾” (147 cm)
Net Weight: 560 pounds (275 kg)

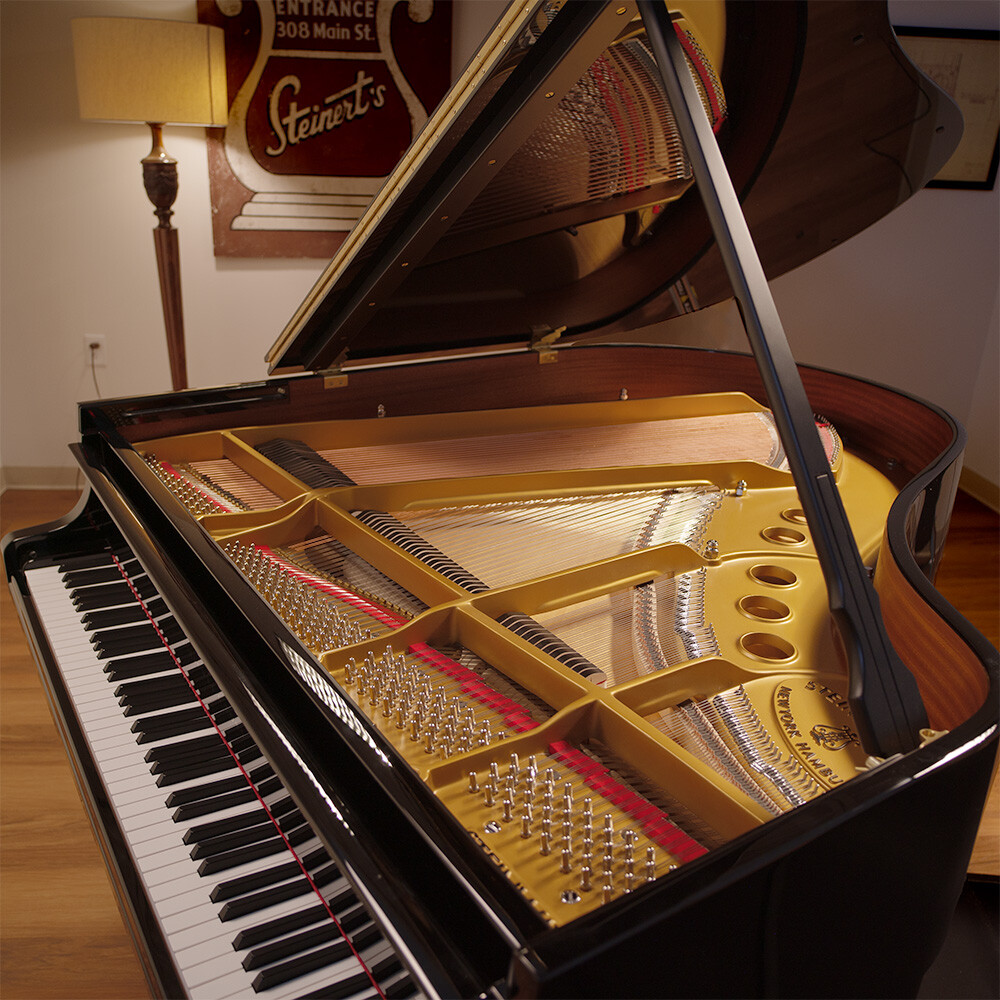

3 solid spruce with a volume of 1,196 cu. In. (19,597cm3); Spruce provides tensile strength with less weight. Maple dowels fasten braces to rim & crossblock producing a single homogenous foundation upon which is built the tonal component. Note: Treble bell is not required in smaller grands of lesser tensions.


Overstrung; combination agraffe; Front AND rear duplex.

Tension: 33,823 lbs. (15,040 kg)


Made from durable, resinous sugar pine to assure strong and constant support of string down-bearing on the soundboard; rib ends are hand-fitted.

Tuning Pins

Premium blued steel; rust-resistant, nickeled heads


Treble: Eleven whole & one-half sizes from high-tensile Swedish steel.

Bass: Swedish steel core wire wound with pure copper.

Longest: Agraffe/bridge: 49¼” (125 cm)


Premium wool top felt and under felt; treated to resist insects and moisture. Compression-wired to maintain permanent shape. Hard rock maple hammer moldings and shanks.


Horizontal-cut premium wool for effective dampening with maple heads for endurance.

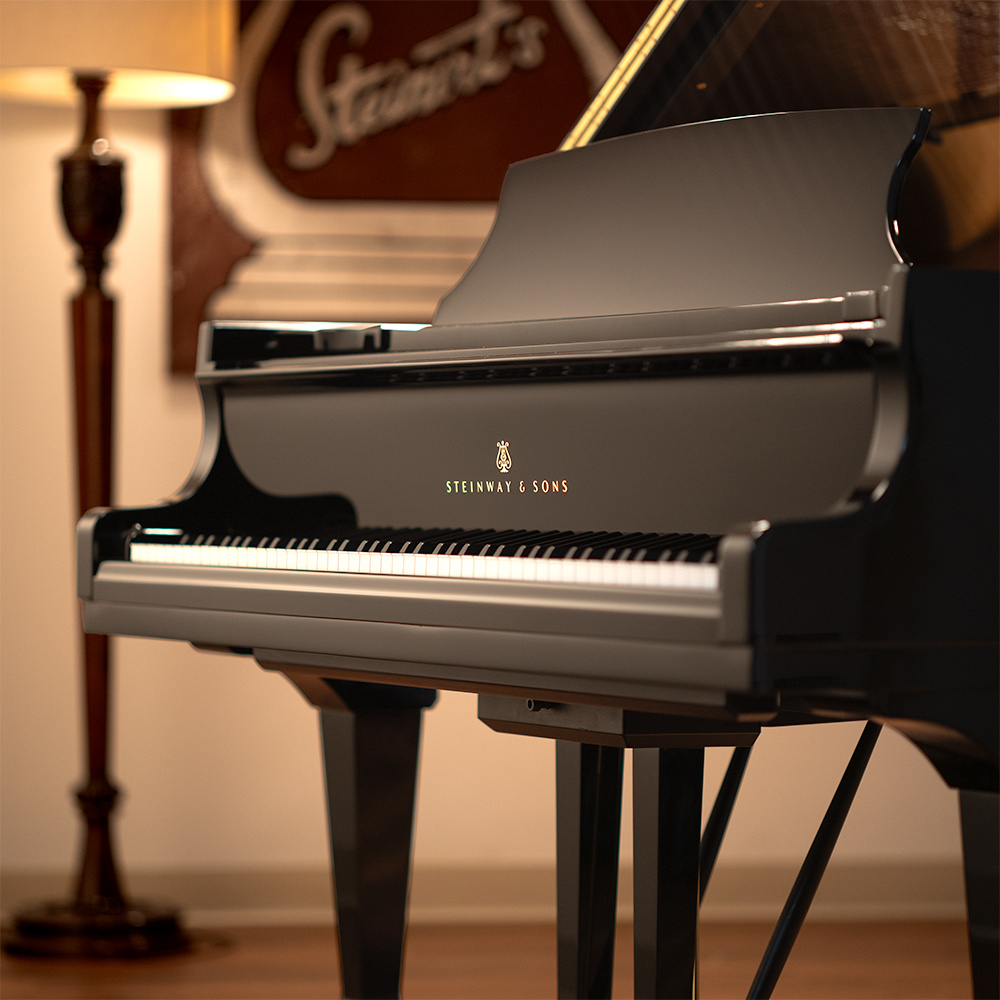

European spruce, individually weighed-off. Chip-proof, stain-resistant coverings for naturals; slip-proof, abraded ebonized sharps. Durable Linden wood buttons reinforce keys over balance rail, permitting maximum tonal power with every strike. Longest key: 19″ (48.3 cm).


Made from planks of quarter-sawn spruce. Horizonal and vertical birch planks present a vented system for humidity escapement. Crowned and reverse-crowned action frame gives a snug fit, intensifies key movement, and prevents “slapping” during heavy playing. Large maple dowel ends provide a solid mount for adjustable brass touch-regulating screws. Thickness: 1¾” (4.45 cm).


Heavy, solid brass. Soft, sustaining, and full sostenuto.

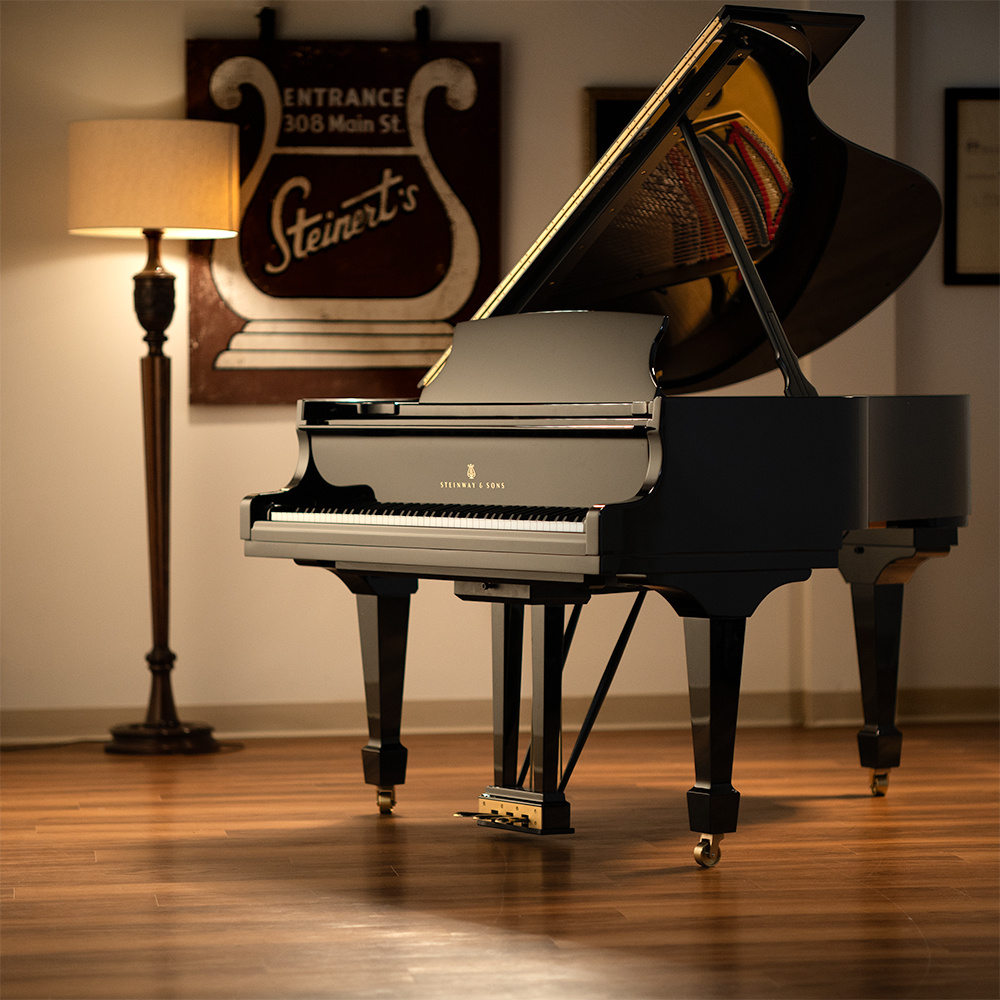

Steinway Model M Piano
