Roland LX-9

Premium Grand Performance in an Upright Cabinet

Request Model Information


Roland LX-9 Overview

The LX-9 is the flagship piano in the premium LX lineup. With commanding looks, unrivaled sound, and nuanced expression, the LX-9 embodies everything you’d expect from a high-end concert grand piano—with all the benefits of an advanced modern instrument. Enjoy a host of digital features to enhance your experience, like Bluetooth connectivity, wireless control with the Roland Piano App, and maintenance-free care.

From Our Inventory

Available Roland LX-9's

Hide group


Not seeing what you're looking for?

Connect with a Piano Consultant

The New Roland LX-9 Customer

Who's it for?

  • The discerning artist seeking the benefits of a purely digital experience, the latest design from Roland’s digital grand piano action, multiple sound options, limitless polyphony, outputs and technology features applicable to any high end production environment
Roland LX-9

Who's it not for?

  • Someone looking for an acoustic experience, or someone seeking a portable digital piano
Roland Steinway Comparison

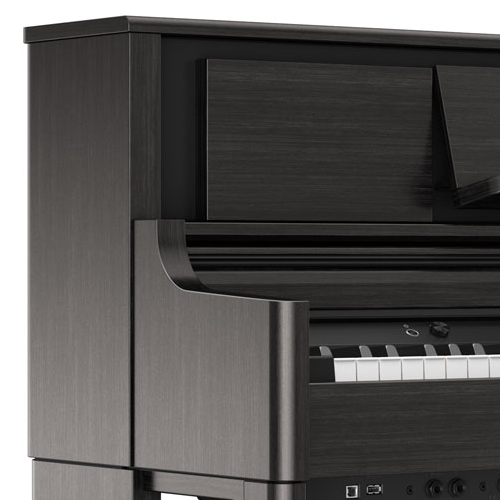

Charcoal:  $6,399

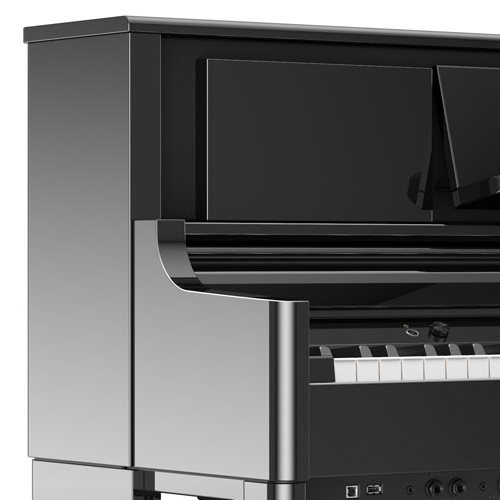

Polished Ebony: $7,199

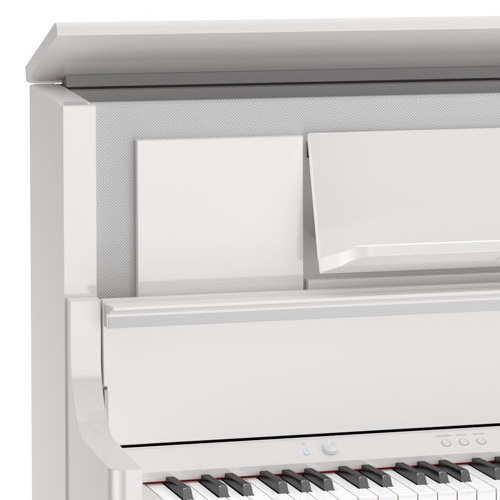

Polished White: $7,199

Roland LX-9 Specifications


Width (with lid closed)

1,395 mm
54-15/16 inches

Depth (with lid closed)

491 mm
19-3/8 inches

Height (with lid closed)

1,179 mm
46-7/16 inches

Width (with lid open)

1,395 mm
54-15/16 inches

Depth (with lid open)

502 mm
19-13/16 inches

Height (with lid open)

1,254 mm
49-3/8 inches


LX-9-PE、LX-9-PW: 111.0 kg/245 lbs
LX-9-CH: 109.5 kg/242 lbs

Sound Generator

Piano Sound

Piano Reality Modeling

Max. Polyphony

Piano: Limitless (solo playing using 'Piano' category tones)
Other: 256


Total 324 Tones
Grand: 4 Tones
Upright: 5 Tones
Classical: 5 Tones
E.Piano: 12 Tones
Organ: 12 Tones
Other: 286 Tones


Piano Reality Ambience

Type: Studio, Lounge, Concert Hall, Wooden Hall, Stone Hall, Cathedral
Depth: 11 steps



Hybrid Grand Keyboard (88 keys Hammer Action Keyboard):
with Escapement, Ebony/Ivory Feel, High Precision Sensing and Haptic Key Vibration



Damper (Responsive Damper Action Pedal, capable of continuous detection, Damper Modeling)
Soft (capable of continuous detection, function assignable)
Sostenuto (function assignable, with muffler pedal function)

Sound System

Sound System

Piano Reality Projection


Cabinet Speakers: 25 cm (9-7/8 inches) x 2 (with Speaker Box)
Near-field Speakers: (12 cm (4-3/4 inches) x 8 cm (3-3/16 inches)) x 2 (with Speaker Box)
Center Near-field Speakers: 8 cm (3-3/16 inches) x 2
Spatial Speakers: 2.5 cm (1 inch) x 2 (Dome type)

Rated Power Output

33 W x 2
21 W x 2
13 W x 2
14 W x 2



Piano Reality Headphones Ambience



Music rest: with Music holders
Key cover: Fallboard type, with Keyboard Lid Switch

Tuning, Voicing

Touch Sensitivity

Key Touch: 100 steps, fixed touch
Hammer Response: Off, 10 steps

Master Tuning

415.3--466.2 Hz (adjustable in increments of 0.1 Hz)


10 types (Equal, Just Major, Just Minor, Pythagorean, Kirnberger I, Kirnberger II, Kirnberger III, Meantone, Werckmeister, Arabic), selectable temperament key



Piano Designer

Key Off Noise
Hammer Noise
Duplex Scale
Full Scale String Resonance
Key Off Resonance
Cabinet Resonance
Soundboard Type
Damper Modeling
Soft Pedal
Single Note Tuning
Single Note Volume
Single Note Character

Internal Songs

Internal Songs

Total 394 songs
Listening: 27 songs
Ensemble: 30 songs
Entertainment: 20 songs
Do Re Mi Lesson: 30 songs
Lesson: 287 songs (Scale, Hanon, Beyer, Burgmuller, Czerny 100)

Data Playback

Playable Software

Standard MIDI Files (Format 0, 1)
Audio File (WAV: 44.1 kHz, 16-bit linear format, MP3: 44.1 kHz, 64 kbps--320 kbps, requires USB flash drive)


Recordable Software

Standard MIDI Files (Format 0, 3 parts, Approx. 70,000 notes memory)
Audio File (WAV: 44.1 kHz, 16-bit linear format, requires USB flash drive)



Bluetooth Ver 5.0
Profile: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy)
CODEC: SBC (Supports SCMS-T content protection)

Compatible Android/IOS Apps (Roland)

Compatible Android/iOS Apps (Roland)

Roland Piano App

Convenient Functions

Convenient Functions

Metronome (adjustable Tempo/Beat/Downbeat/Pattern/Volume/Tone, with Rhythm Pattern: 80 patterns)
Twin Piano (with Individual Mode)
Transpose (in semitones)
Speaker volume and Headphones volume automatically select function
Speaker Auto Mute
Volume limit function
Panel Lock
Panel Off
Auto Off



Graphic LCD 128 x 64 dots


DC In jack
Input jacks: Stereo miniature phone type
Output (L/Mono, R) jacks: 1/4-inch phone type
USB Computer port: USB B (compatible with USB MIDI/Audio)
USB Memory port: USB A
Phones jack x 2: Stereo miniature phone type, Stereo 1/4-inch phone type

Power Supply

AC adaptor

Power Consumption

Power Consumption: 65 W (when using the included AC adaptor)
* Approximate power consumption when playing the piano at the center value of the volume: 25 W
* Power consumption when sound has not been played after power-on: 23 W
* Power consumption when in OFF mode (when the power automatically turns off): 0.2 W


Owner's Manual
"Roland Piano Masterpieces"
AC adaptor
Power cord
Headphone hook

Roland LX-9
