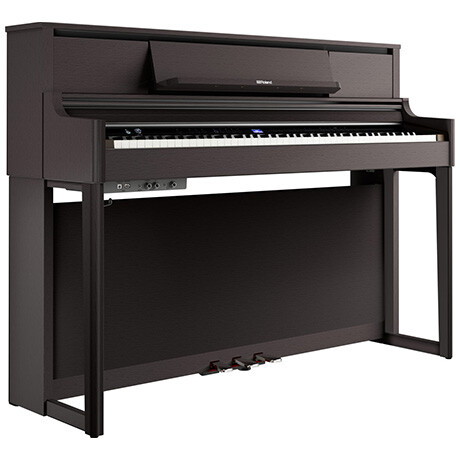

Roland LX-5

Sound, Performance, and Design in Harmony

Request Model Information

lx-5_hero
rectangle
bottom-fade

Roland LX-5 Overview

The LX-5 is an approachable upright piano that provides a solid foundation for skills to flourish. This entry-level instrument in the LX lineup packs a big sound, backed by advanced sound technology from the flagship LX-9. Feel the smooth hybrid action as your fingers glide over the keys. Tune into convenient digital features to propel performances and support learning. And rest assured that you’ve made a sound investment with a maintenance-free future.

From Our Inventory

Available Roland LX-5's

Hide group

Status

Not seeing what you're looking for?

Connect with a Piano Consultant

The New Roland LX-5 Customer

Who's it for?

  • The discerning artist seeking the benefits of a purely digital experience, the latest design from Roland’s digital grand piano action, multiple sound options, limitless polyphony, outputs and technology features applicable to any high end production environment
lx-5-dr_front_gal

Who's it not for?

  • Someone looking for an acoustic experience, or someone seeking a portable digital piano
Roland Steinway Comparison

Finishes

Pricing

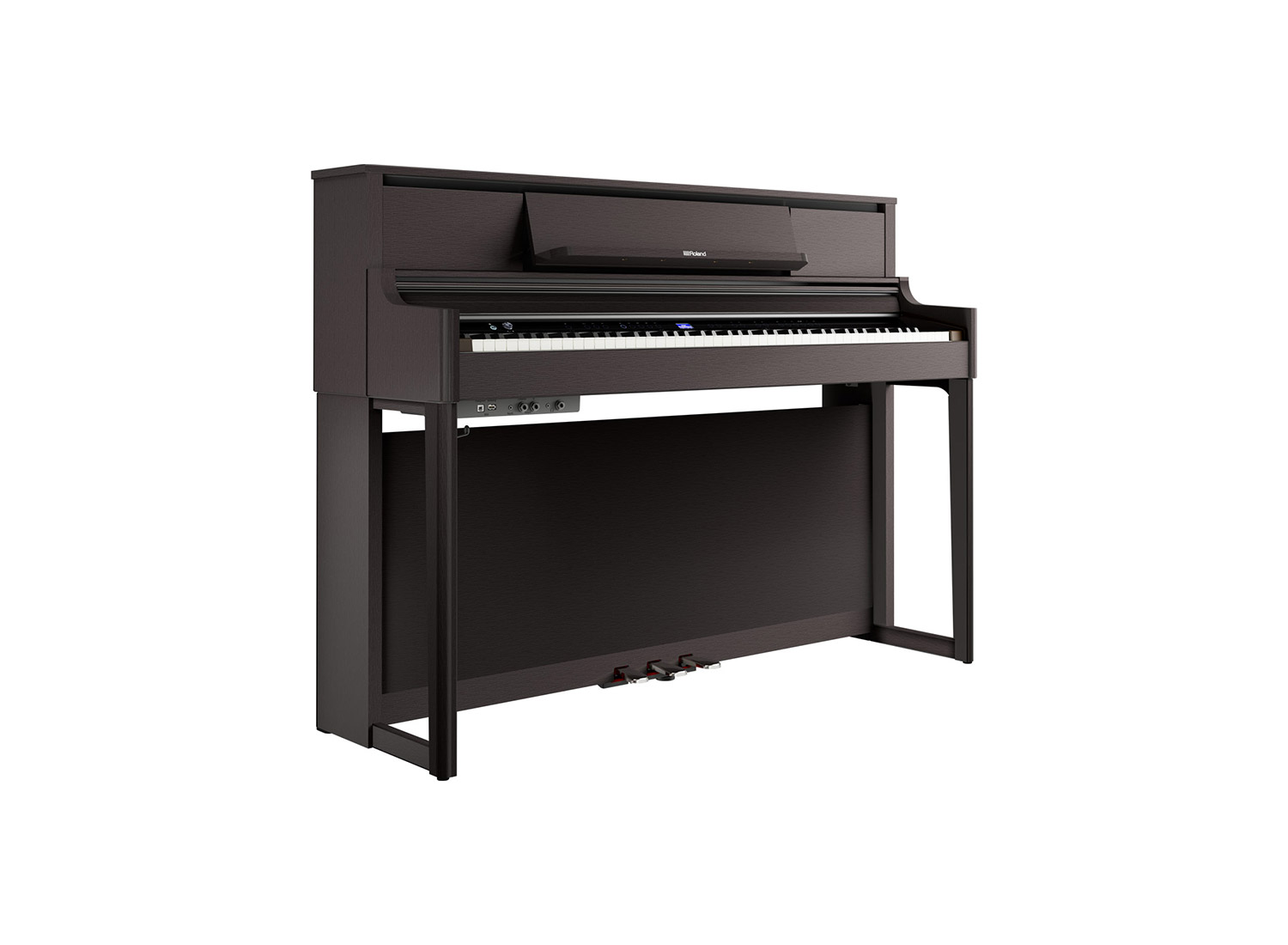

Dark Rosewood: $3,799
Charcoal:  $3,799

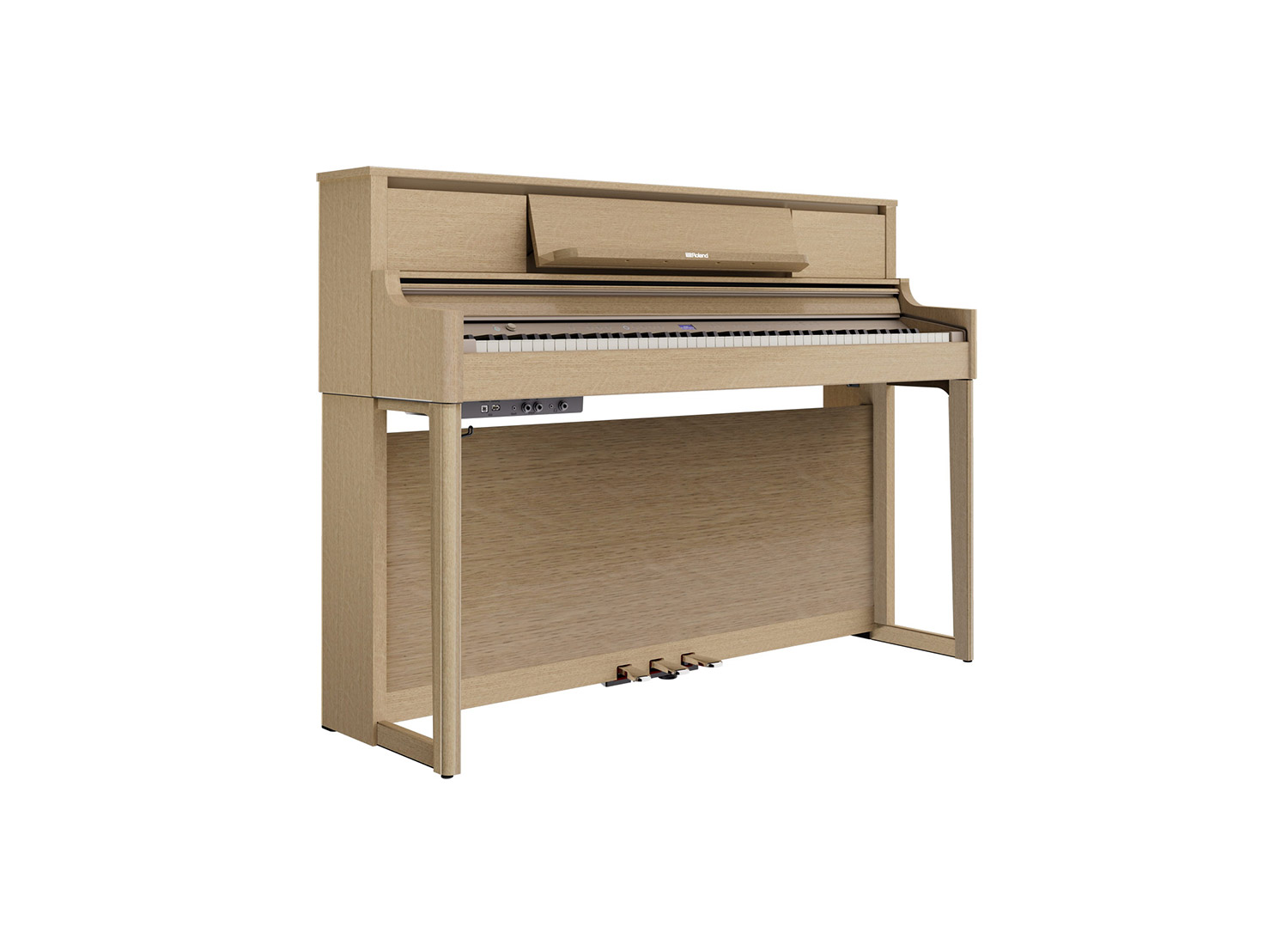

Light Oak: $3,799

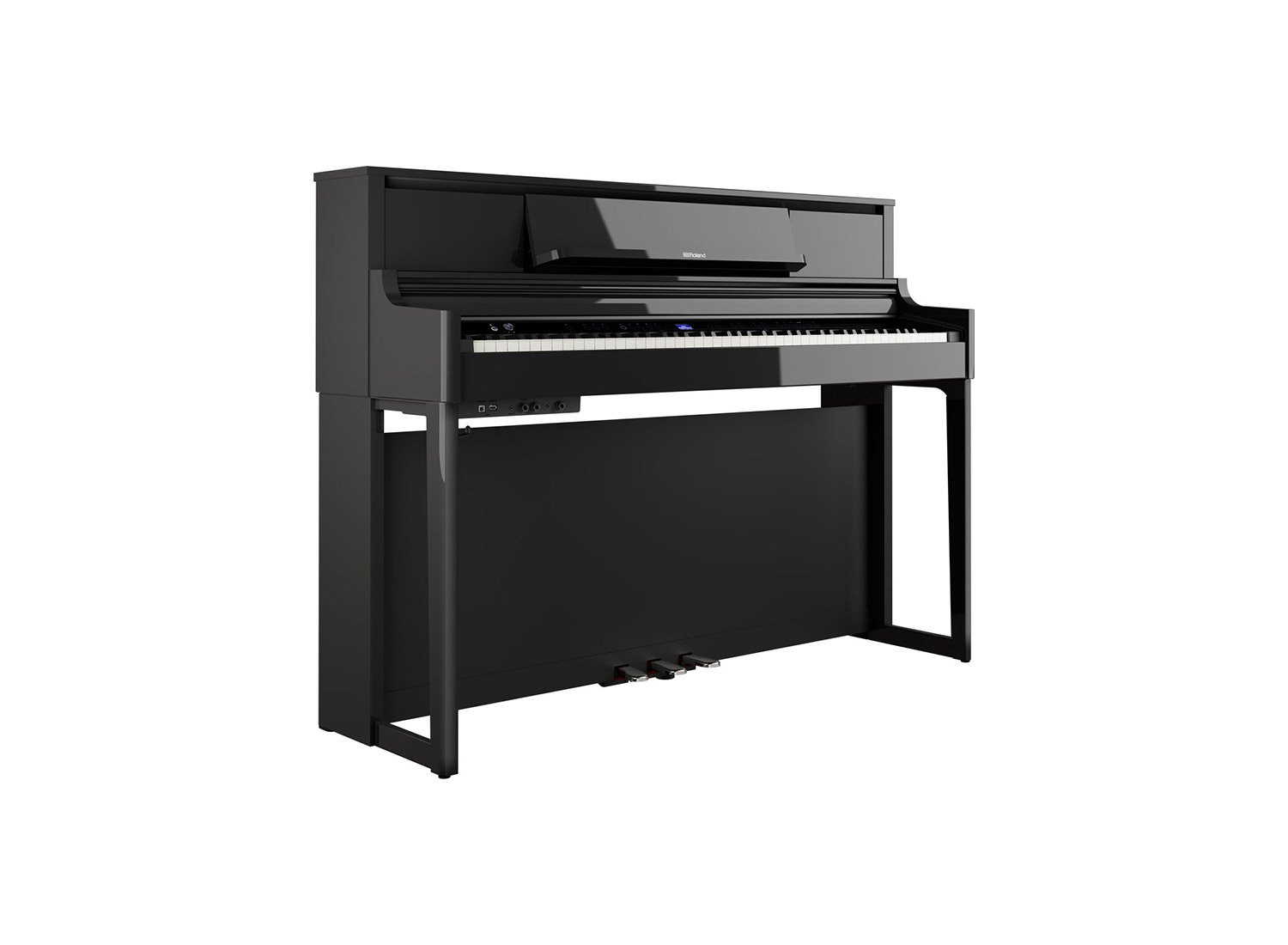

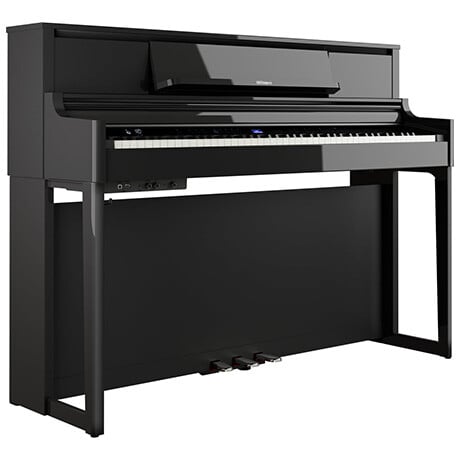

Polished Ebony: $4,299


Roland LX-5 Specifications

Dimensions

Size (including piano stand)
Width
1,383 mm
54-1/2 inches



Depth
468 mm
18-7/16 inches



Height
1,039 mm
40-15/16 inches

Weight

Weight
LX-5-PE: 75.5 kg/167 lbs
LX-5-CH, LX-5-DR, LX-5-LA: 74.0 kg/164 lbs

Sound Generator

Piano Sound

Piano Reality Modeling

Max. Polyphony

Piano: Limitless (solo playing using 'Piano' category tones)
Other: 256

Tones

Total 324 Tones
Grand: 4 Tones
Upright: 5 Tones
Classical: 5 Tones
E.Piano: 12 Tones
Organ: 12 Tones
Other: 286 Tones

Ambience

Piano Reality Ambience

Type: Studio, Lounge, Concert Hall, Cathedral
Depth: 11 steps

Keyboard

Keyboard

PHA-50 Hybrid Keyboard (88 keys Hammer Action Keyboard)
with Escapement, Ebony/Ivory Feel and High Precision Sensing

Pedal

Pedal

Damper (Progressive Damper Action Pedal, capable of continuous detection, Damper Modeling)
Soft (capable of continuous detection, function assignable)
Sostenuto (function assignable, with muffler pedal function)

Sound System

Sound System

Piano Reality Projection

Speakers

Cabinet + Spatial Speakers: 12 + 2.5 cm (5 + 1 inches) x 2 (Coaxial Speaker)
Near-field Speakers: 8 cm (3-3/16 inches) x 2

Rated Power Output

24 W x 2
21 W x 2

Headphones

Headphones

Piano Reality Headphones Ambience

Cabinet

Cabinet

Music rest: with Music holders
Key cover: Slide type, with Keyboard Lid Switch

Tuning, Voicing

Touch Sensitivity

Key Touch: 100 steps, fixed touch
Hammer Response: Off, 10 steps

Master Tuning

415.3--466.2 Hz (adjustable in increments of 0.1 Hz)

Temperament

10 types (Equal, Just Major, Just Minor, Pythagorean, Kirnberger I, Kirnberger II, Kirnberger III, Meantone, Werckmeister, Arabic), selectable temperament key

Effects

Brilliance

Piano Designer

Lid
Key Off Noise
Hammer Noise
Duplex Scale
Full Scale String Resonance
Damper Resonance
Key Off Resonance
Cabinet Resonance
Soundboard Type
Damper Modeling
Single Note Tuning
Single Note Volume
Single Note Character

Internal Songs

Internal Songs

Total 394 songs
Listening: 27 songs
Ensemble: 30 songs
Entertainment: 20 songs
Do Re Mi Lesson: 30 songs
Lesson: 287 songs (Scale, Hanon, Beyer, Burgmuller, Czerny 100)

Data Playback

Playable Software

Standard MIDI Files (Format 0, 1)
Audio File (WAV: 44.1 kHz, 16-bit linear format, MP3: 44.1 kHz, 64 kbps--320 kbps, requires USB flash drive)

Recorder

Recordable Software

Standard MIDI Files (Format 0, 3 parts, Approx. 70,000 notes memory)
Audio File (WAV: 44.1 kHz, 16-bit linear format, requires USB flash drive)

Bluetooth

Bluetooth

Bluetooth Ver 5.0
Profile: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy)
CODEC: SBC (Supports SCMS-T content protection)

Compatible Android/IOS Apps (Roland)

Compatible Android/iOS Apps (Roland)

Roland Piano App

Convenient Functions

Convenient Functions

Metronome (adjustable Tempo/Beat/Downbeat/Pattern/Volume/Tone, with Rhythm Pattern: 80 patterns)
Dual
Split
Twin Piano (with Individual Mode)
Transpose (in semitones)
Speaker volume and Headphones volume automatically select function
Speaker Auto Mute
Volume limit function
Panel Lock
Panel Off
Auto Off

Other

Display

Graphic LCD 128 x 64 dots

Connectors

DC In jack
Input jacks: Stereo miniature phone type
Output (L/Mono, R) jacks: 1/4-inch phone type
USB Computer port: USB B (compatible with USB MIDI/Audio)
USB Memory port: USB A
Phones jack x 2: Stereo miniature phone type, Stereo 1/4-inch phone type

Power Supply

AC adaptor

Power Consumption

Power Consumption: 31 W (when using the included AC adaptor)
* Approximate power consumption when playing the piano at the center value of the volume: 17 W
* Power consumption when sound has not been played after power-on: 16 W
* Power consumption when in OFF mode (when the power automatically turns off): 0.2 W

Accessories

Owner's Manual
"Roland Piano Masterpieces"
Leaflet "USING THE UNIT SAFELY"
AC adaptor
Power cord
Headphone hook
